• (7) LT245/75R17E all-season BSW tires

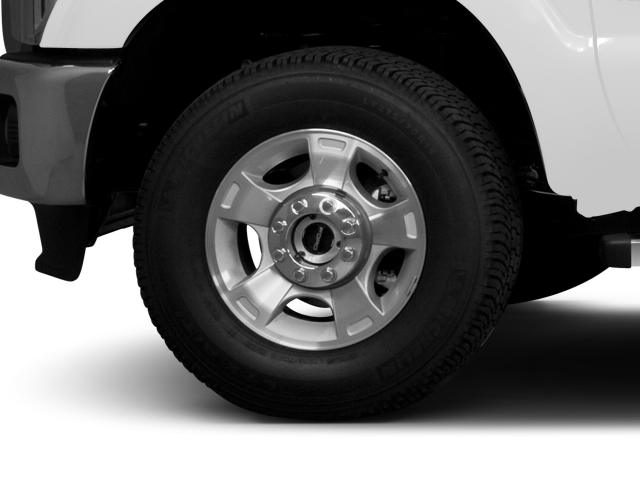

• (6) 17" argent painted steel wheels
• Full-size spare tire w/lock & carrier
• Black painted steel front bumper w/grained molded-in-color top cover & black lower air dam
• Black painted rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• 6" angular molded black step bars

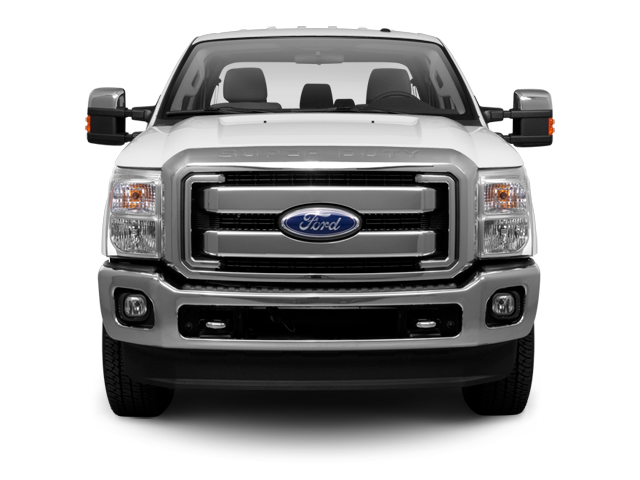

• Black molded-in-color grille
• Dual beam jewel-effect headlamps
• Pickup box/cargo lights
• Roof clearance lights
• Underhood service light
• Manual telescoping trailer tow mirrors w/manual glass
• Solar tinted glass
• Interval windshield wipers
• Front/rear license plate brackets
• Black door handles

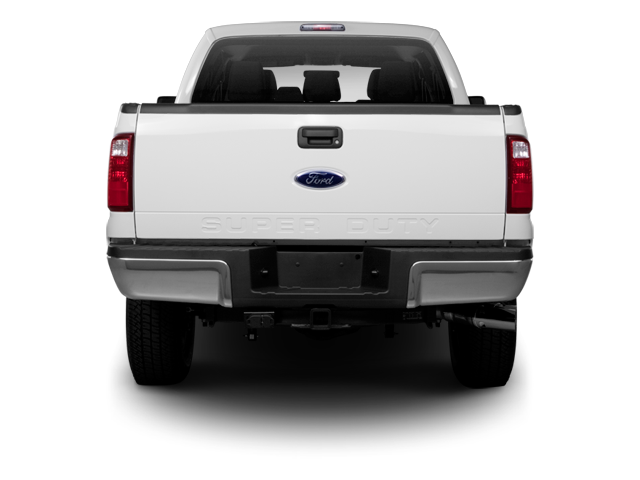

• Removable locking tailgate w/black handle & TailGate Assist

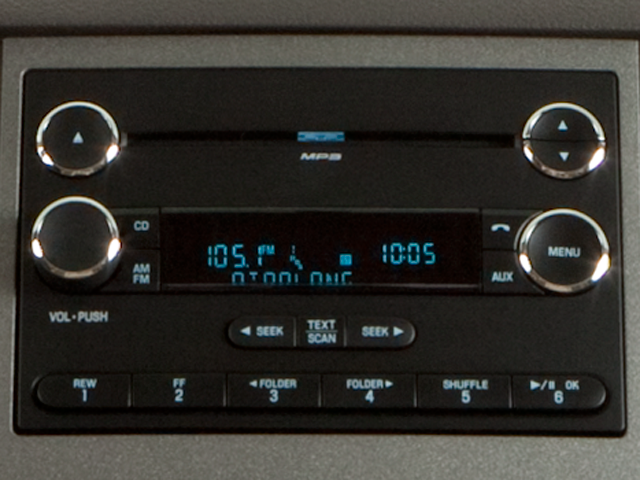

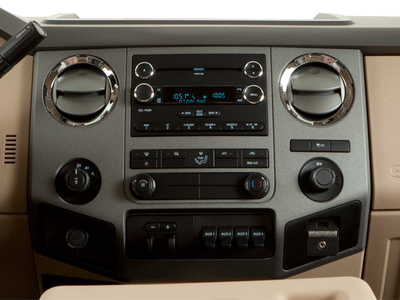

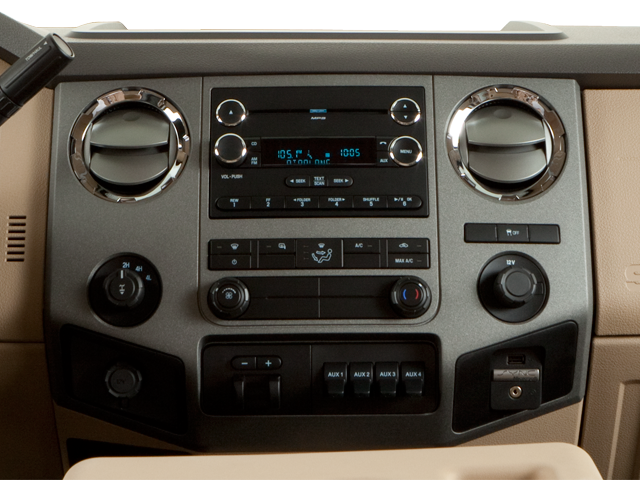

• AM/FM stereo -inc: clock, (2) speakers

• Air conditioning

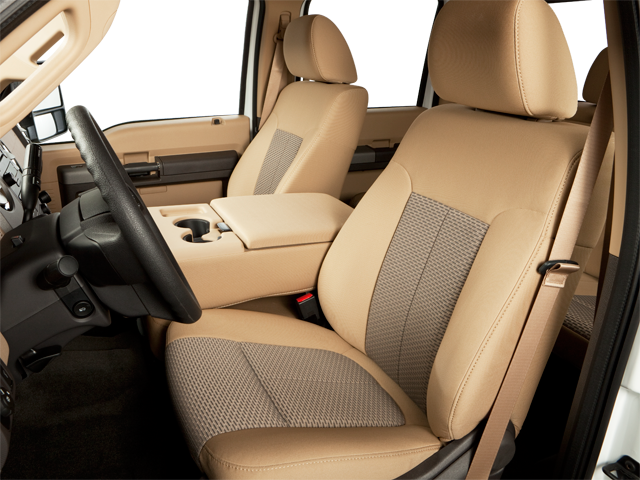

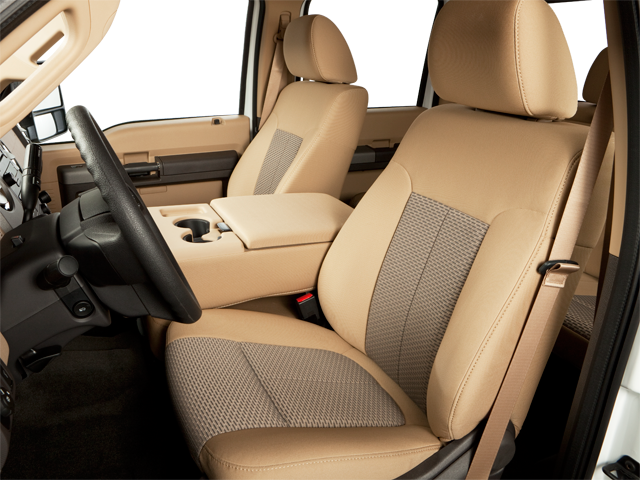

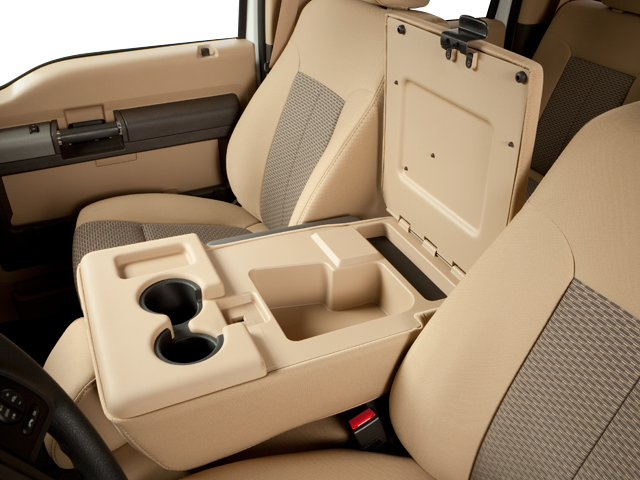

• HD vinyl 40/20/40 split bench front seat -inc: center armrest, cupholder, storage
• Driver manual lumbar support

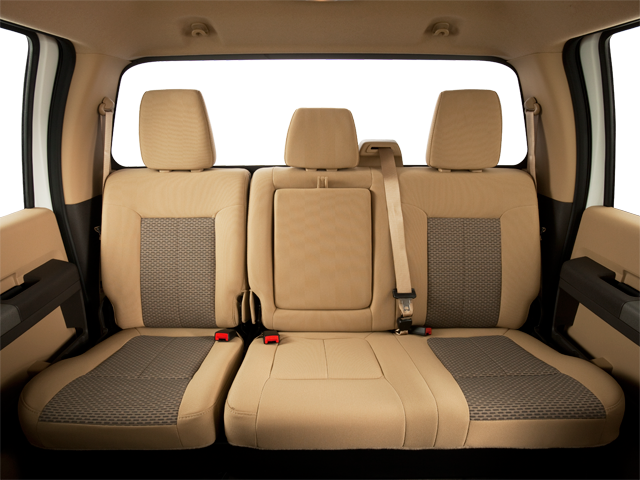

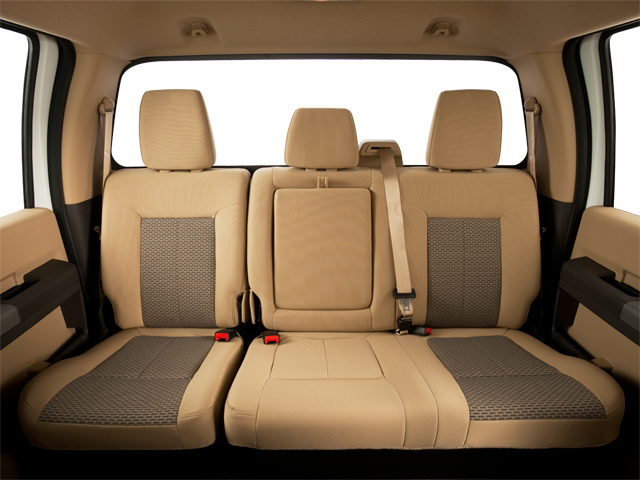

• Vinyl 60/40 flip-up/fold-down rear split bench seat -inc: (3) head restraints
• Black vinyl full-floor covering
• Color-keyed scuff plates

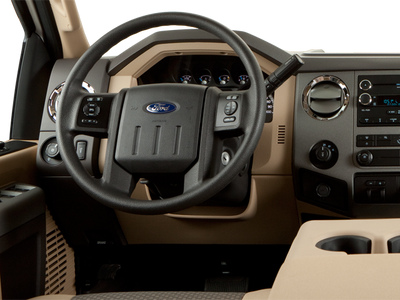

• Tilt/telescoping steering column
• Multifunction switch message center -inc: ice blue lighting, 3-button message control on steering wheel
• Oil minder system
• SecuriLock anti-theft ignition
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• Dash-top tray

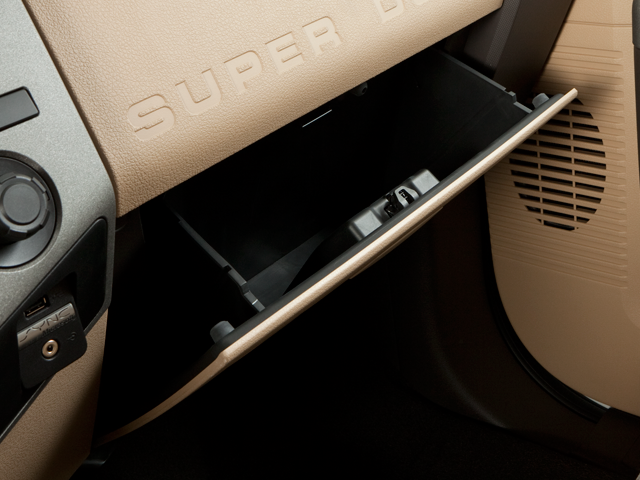

• Glove box
• Instrument panel mounted storage bin & trash bag hook
• Ashtray & cigar lighter

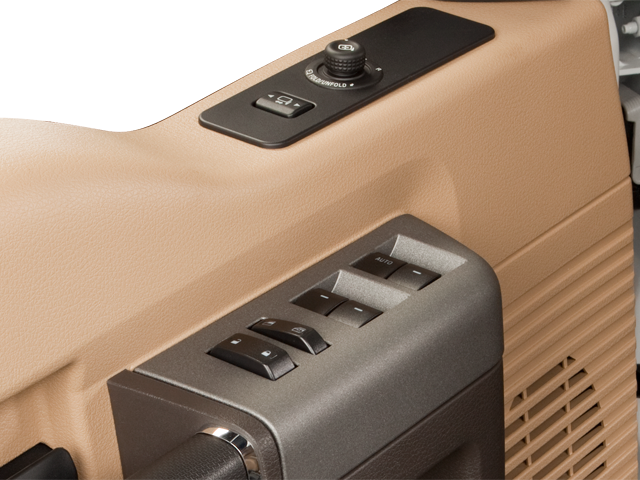

• Color-keyed molded door trim panel -inc: hard armrest, grab handle, reflector
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: driver-side pocket, passenger-side mirror insert
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Hill start assist control
• Trailer sway control
• Driver & front passenger airbags
• Driver & front passenger side air bag/curtain
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Front center seat integrated restraints (SIR)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats

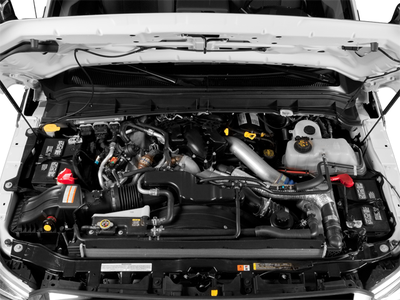

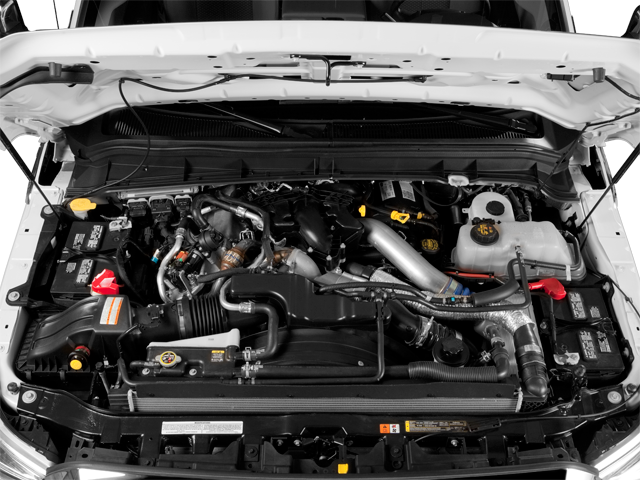

6.7L 32-VALVE POWER STROKE V8 DIESEL ENGINE

• diesel emission fluid system
• engine exhaust braking in tow/haul mode
• 750 CCA 78-AH dual batteries
• intelligent oil life minder
• 16K trailer hitch receiver

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4733
• Curb Weight - Front (lbs): 4116
• Curb Weight - Rear (lbs): 3470
• Curb Weight - Rear (lbs): 3343
• Gross Vehicle Weight Rating Cap (lbs): 13300
• Gross Combined Wt Rating (lbs): 30000
• Gross Combined Wt Rating (lbs): 19500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1770
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11600
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5325
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2900
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): 0.94
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.6
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: 20.4
• Turning Diameter - Curb to Curb (ft): 56.6
• Turning Diameter - Wall to Wall (ft): 58.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 37.5
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 172.4
• Length, Overall w/o rear bumper (in): 263.0
• Width, Max w/o mirrors (in): 95.0
• Height, Overall (in): 79.9
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.0
• Ground Clearance, Rear (in): 8.0

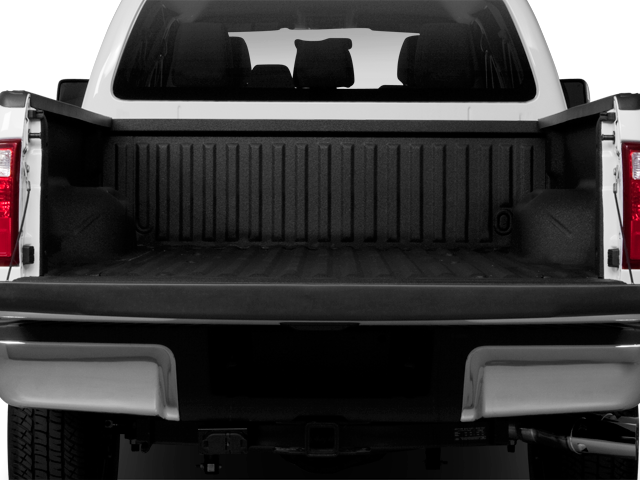

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 60.6
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.3
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary

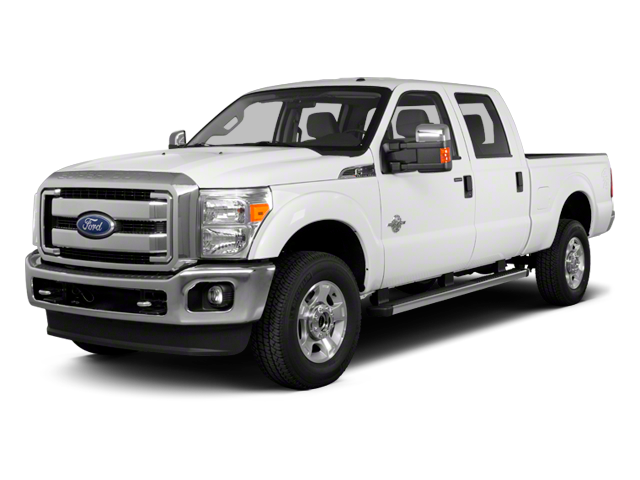

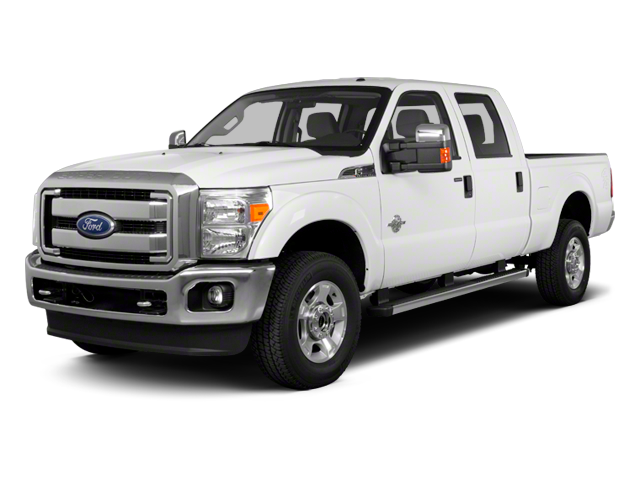

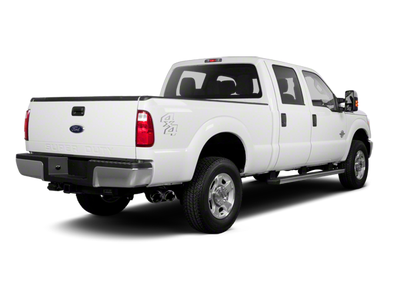

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Crew Cab 8'
• Body Code: 172" WB
